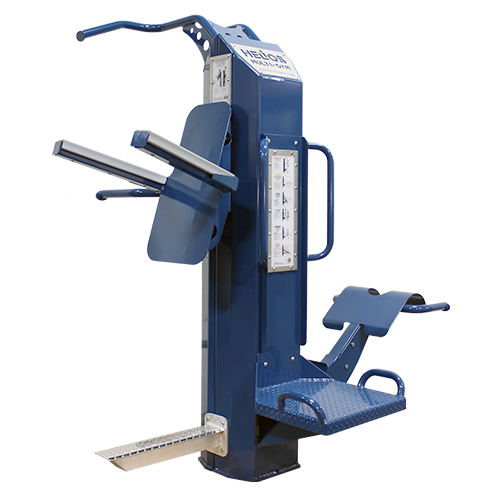

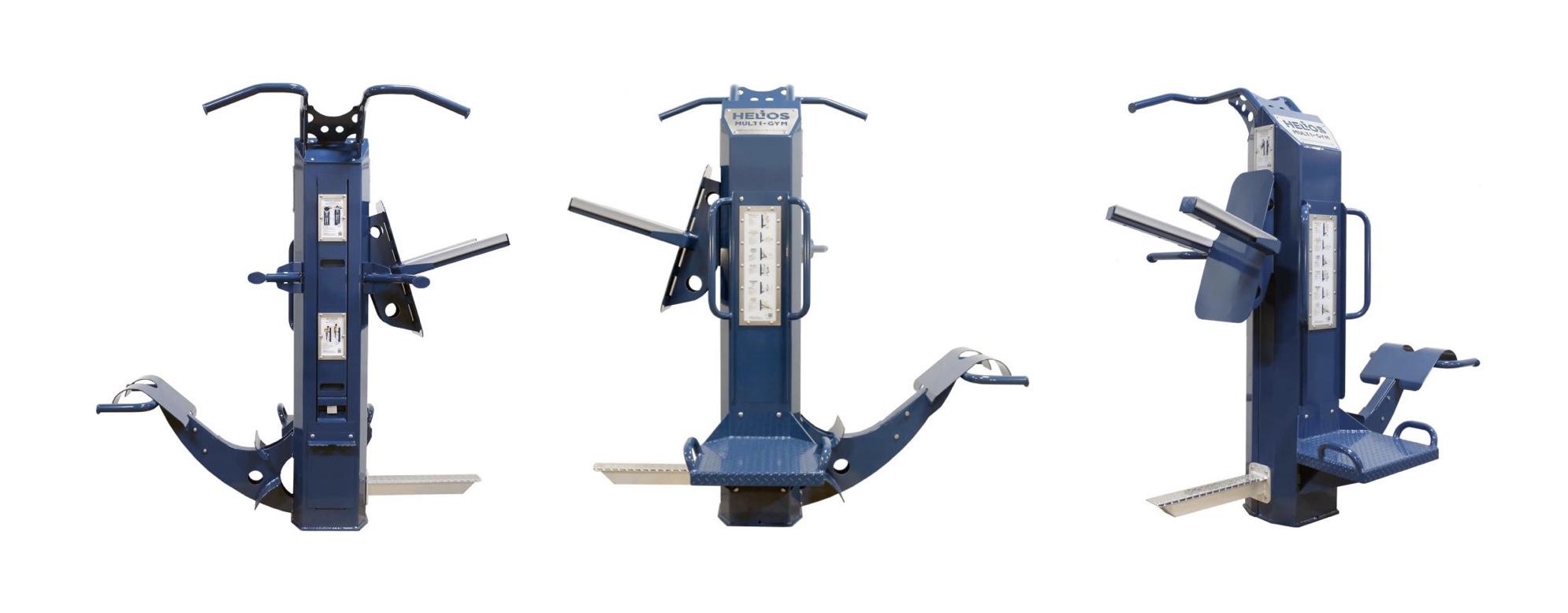

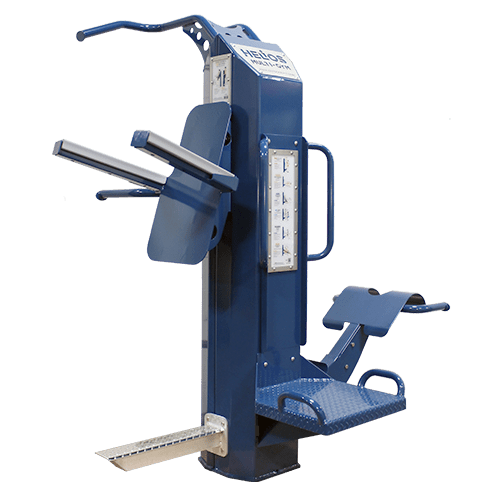

Atlas Multigym

Width:   80” / 204 cm

Length: 65” / 166 cm

Height:  85” / 216 cm

Weight: 620 lbs / 282 kg

Fall Height: 84” / 213cm

Use Zone: 12’8” x 11’9”

Shipping Weight: 585 lbs / 265 kg

Shipping Dimensions: 44” wide x 45” long x 85” high / 112 cm wide x 122 cm long x 216 cm high

Instructional Placards: Reverse print with UV-stabilized ink on 1/4” thick Lexan. Bolted to the columns with a stainless steel trim ring using stainless steel carriage bolts.

Frame: Constructed of 3/16” and 1/4” thick heavy-duty steel. All fasteners are tamperproof stainless steel carriage bolts with a smooth, rounded head and square neck. The locking nuts are shielded behind a padlocked access hatch.

Finish:

• All parts have surfaces prepped and cleaned of all mill scale, rust, oils, and dirt using shot blast and/or
  chemical wash.
• Primer coat is applied with epoxy zinc-rich primer (3-4 mil thickness) and cured in oven.
• Primer designed for superior rust protection. Tested for 3000 hours of salt spray resistance.
• Top finish coat is applied with TGIC-FREE weather-resistant polyester powder (3-4 mil thickness) and
  cured in oven.
• Tested for 1500 hours of salt spray resistance.
• All parts inspected to be free of paint defects prior to shipping.

Accessibility: It is the manufacturers’ opinion that the SPARTAN Multigym conforms to the A.D.A. accessibility standard, assuming an accessible protective surfacing is provided or within the entire use zone.
