Description
Standard features include:
• Woodland green Polyester Powder Coat finish
• Chrome-plated brass bubbler locked to stainless steel receptor
• Push button valve
• Bubbler guard
• Automatic flow regulation
• Supply complete with 1/2″ IPS lock shield
• screwdriver stop
• 1-1/4″ IPS waste
• Vinyl reinforced hose
Option(s):
Bibb Faucets:
-31 R.C.P. self closing, plain end
-32 R.C.P. compression type, hose end and VB
-32-LK with loose key
-32-SC Self closing, hose end and vacuum breaker
-34 C.P. Frost Proof jug filler
-34-FPS Same, for -FP models
-35 Recessed compression type, hose end and vacuum breaker
-35-VP Same with key operated cover
-37 Foot Spray
-40 Commemorative plaque
-84 Water filter
-85 Ground Valve box with lid.
-86 Attached metal valve box.
-87 Surface Valve box w/ cover plate
-95 Sand Trap
-96 Sand strainer plate
-SS stainless steel finish

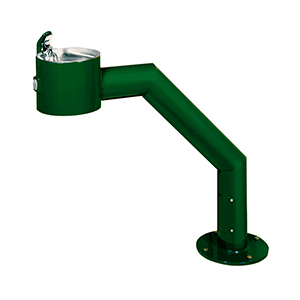

All-Purpose Drinking Fountain — Metal
These rough-in dimensions may vary 1/2″ (13 mm) plus or minus
All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm).
Dimensions
4700 34-3/4″H x 36W with 12″ Dia. Base / Single with surface mount (shown)
4700-FP 34-3/4″H x 36W with 12″ Dia. Base / With frost-proof valve assembly
