Hyperbolic Sails

Surface mount with Wind Load Speeds of 105 MPH. Standard sizes are priced below; custom sizes available. Available with Traditional or Dual Color Fabric!

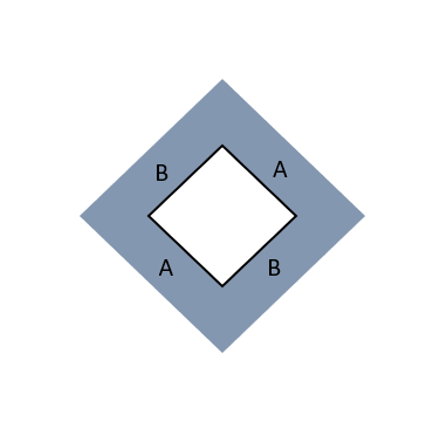

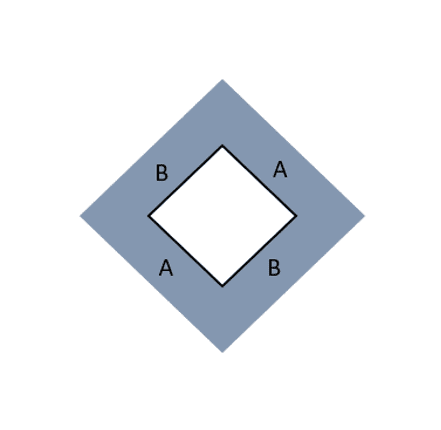

Hyperbolic Sails Item # Entry Height Side A Side B 2021 MSRP
HY202008 8 20 20 $7,640
HY252508 8 25 25 $10,100
HY303008 8 30 30 $14,184
HY353508 8 35 35 $16,806
HY202010 10 20 20 $9,373
HY252510 10 25 25 $11,074
HY303010 10 30 30 $15,288
HY353510 10 35 35 $18,103
HY202012 12 20 20 $9,825
HY252512 12 25 25 $11,656
HY303012 12 30 30 $16,391
HY353512 12 35 35 $20,961
HY202014 14 20 20 $11,559
HY252514 14 25 25 $14,601
HY303014 14 30 30 $19,635
HY353514 14 35 35 $24,119

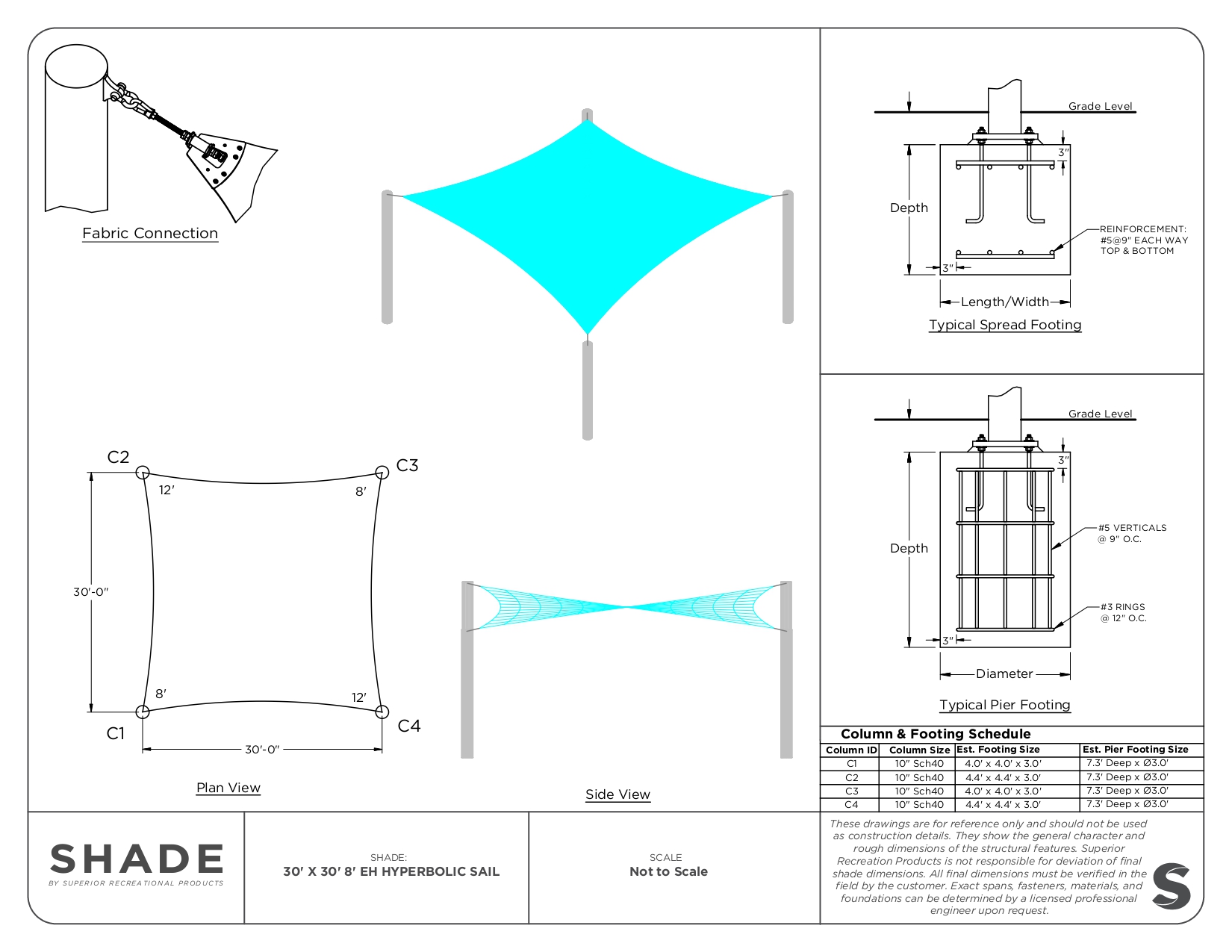

Subject to additional costs for engineered drawings or permitting.

A temporary 5.5% steel surcharge will be added to the equipment cost on your estimate.

SKU: Hyperbolic Sails Categories: ,

Description

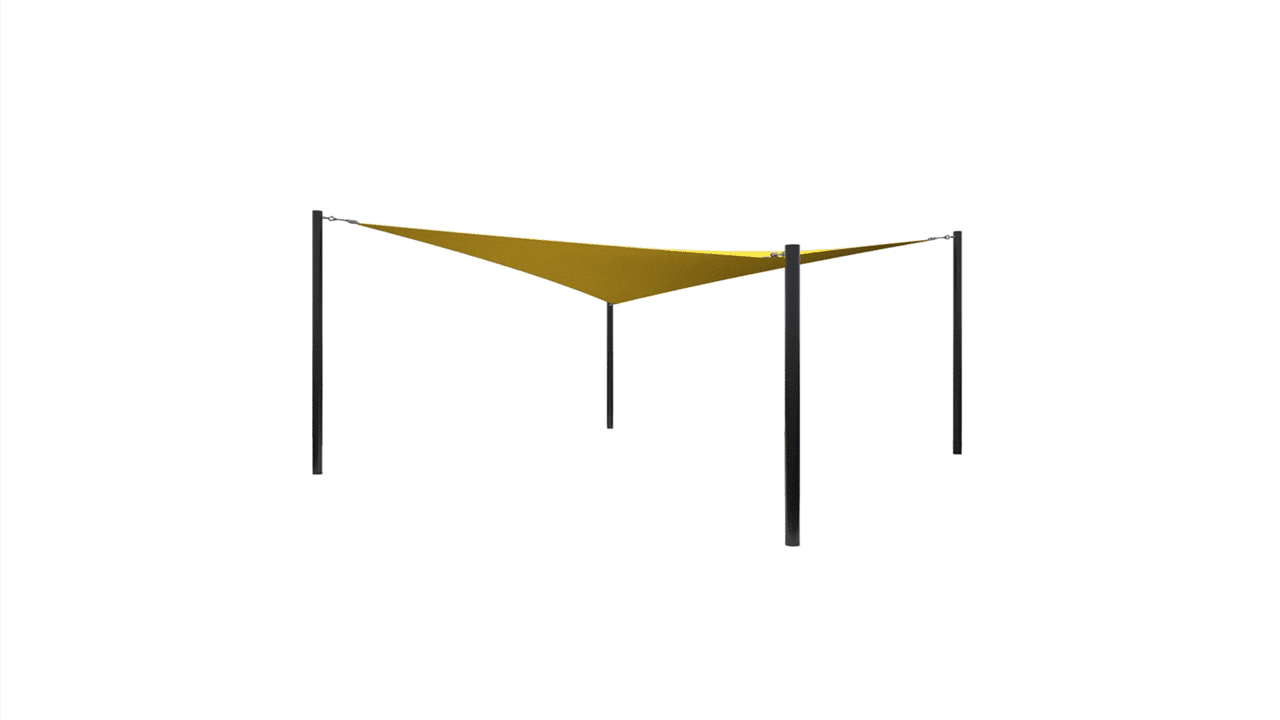

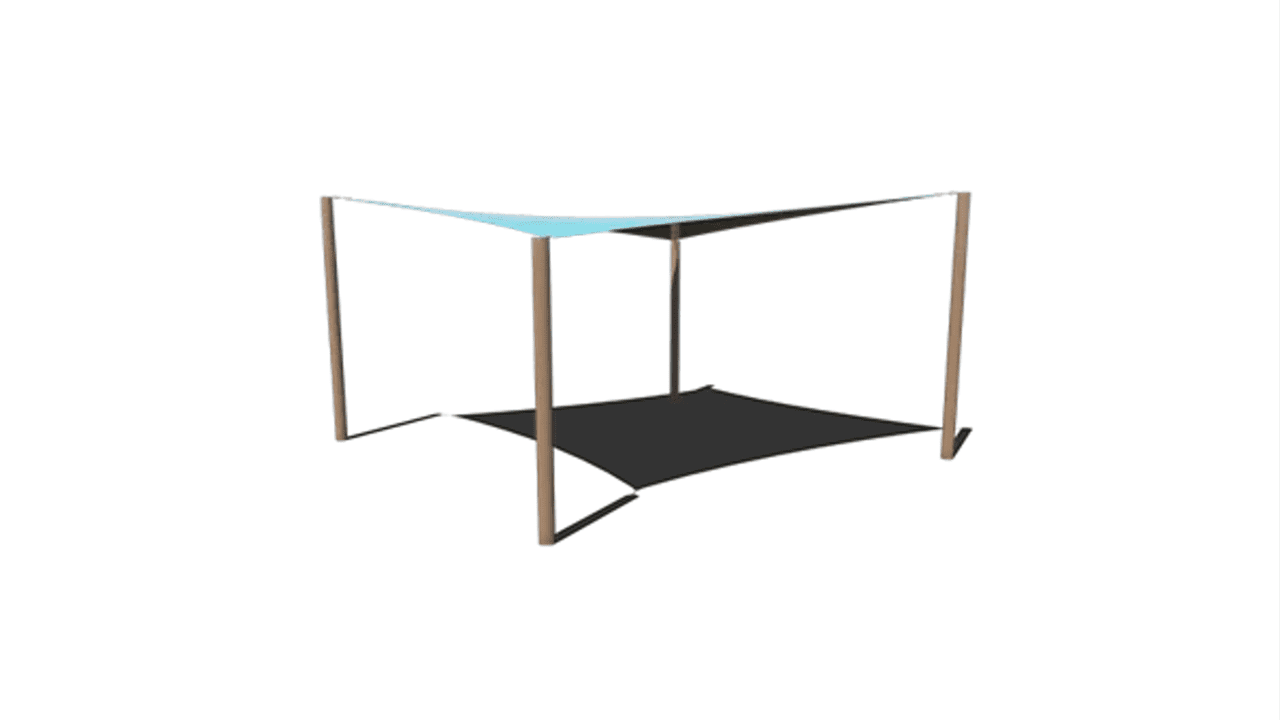

Hyperbolic Sails are four-sided sails that use differing attachment elevations to form a three-dimensional canopy profile. On a typical Hyperbolic Sail, the canopy will have two high elevation connections on diagonal opposites and two low elevation connections on diagonal opposites, giving the canopy a twisted look. Hyperbolic Sails offer an architectural spin on traditional triangular sails and can be used to create beautiful and functional spaces. Sails should be limited to 35 ft. x 35 ft. but can be manipulated into a variety of smaller square and rectangular sizes.

Quick Highlights:

  • 8 ft., 10 ft., 12 ft., 14 ft. Entry Heights
  • Surface or In-Ground Mount
  • Traditional or Dual Color Shade Fabric

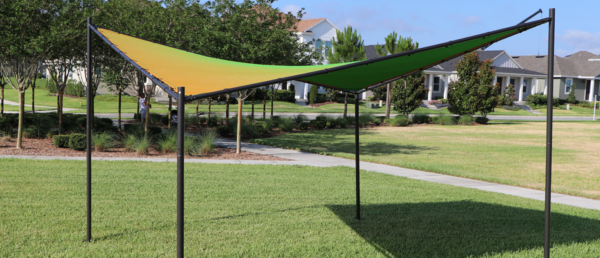

Dual Color Shade Fabric:

This product is available in our brand new Dual Color Shade Fabric. This fabric combines two unique colored fabric yarns to create a two-tone fabric with an impressive shimmery effect. A 10% price increase applies.

Stainless steel hardware and cables are available upon request and are subject to additional costs (recommended for coastal areas).

Shade fabric is cut after shade posts are installed to ensure accuracy requiring two install trips. Fabric can be installed with posts at the same time after a waiver is signed.
