Bleacher Shade 4-Row


Surface mount with Glide Elbow; Wind Load Speeds of 105 MPH. Custom sizes available.

LengthShade SizeShade StyleItem NumberPrice
9’14x12x10T-CantileverTC141210SG$ 6,086
  Hanging CantileverHC141210SG$ 7,476
15’20x12x10T-CantileverTC201210SG$ 6,786
  Hanging CantileverHC201210SG$ 8,458
21’26x12x10T-CantileverTC261210SG$ 7,847
  Hanging CantileverHC261210SG$ 9,759
27’30x12x10T-CantileverTC301210SG$ 9,305
  Hanging CantileverHC301210SG$ 10,734

Subject to additional costs for engineered drawings or permitting.

SKU: Bleacher Shade 4-Row Categories: , , Tag: Request Information

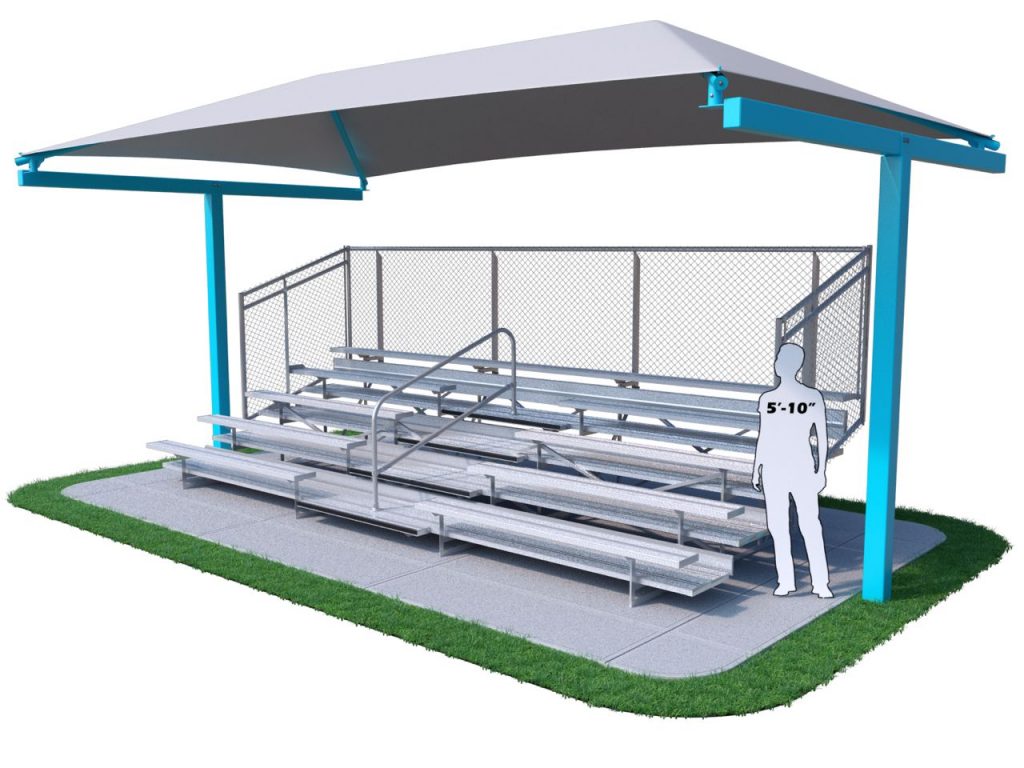

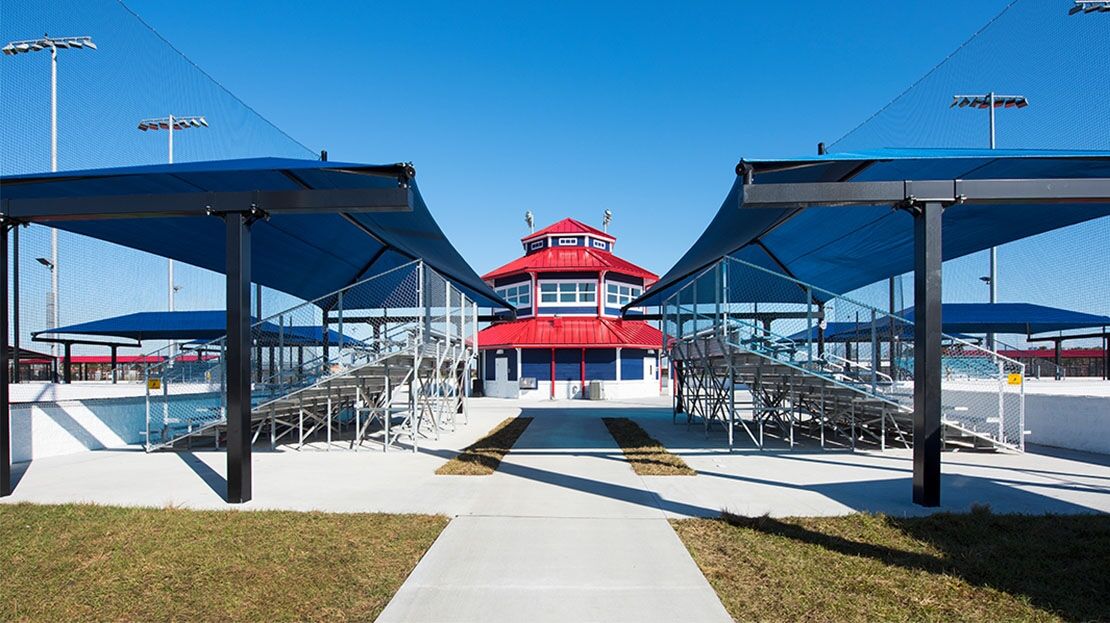

Cantilever Shaded Bleachers
Hanging Cantilevers and T-Cantilevers provide a perfect fit over bleachers as it offers a clear view. Keep visitors comfortable and wanting to stay longer while enjoying their time at the ballpark. These cantilevers come in 8’, 10’, and 12’ heights.

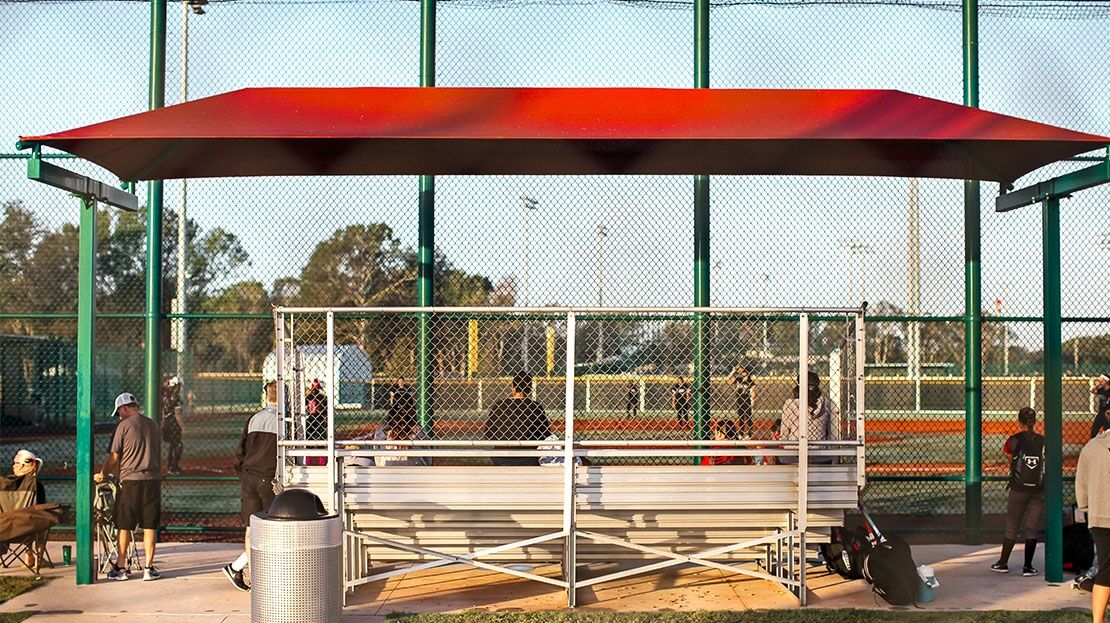

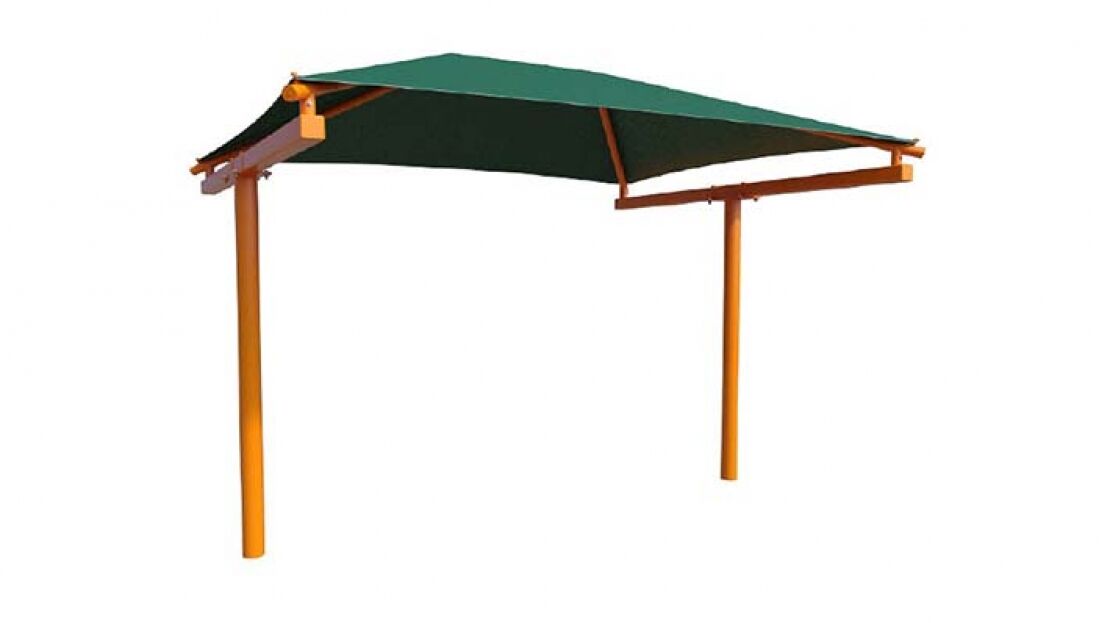

Keep the interference of posts to a minimum with the T-Cantilever shade. Fans stay shaded in the stands while they cheer on their favorite team playing on the field. T-cantilever shades feature a single column per beam up to 18 ft. in width. Columns can be spaced up to 27 ft. before additional bays are required.

Quick Highlights:

  • 8 ft., 10 ft., 12 ft. Entry Heights
  • Surface or In-Ground Mount
  • With or Without Glide Elbow™
  • Traditional Shade Fabric

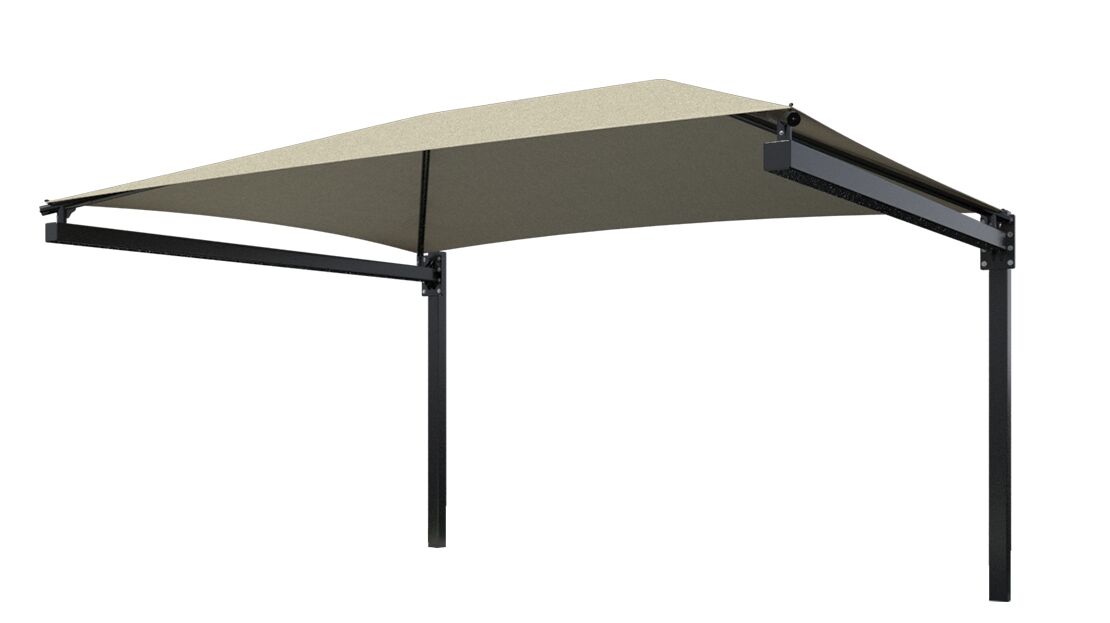

The Hanging Cantilever is a solid choice for walkways, parking lots, and bleacher seating. The Hanging Cantilever has a preferred max width of 18 ft. but can be configured with multiple bays to cover a wider distance as a custom shade solution. Contact us to learn more about hanging cantilever shade structures! Choose between surface or in-ground mounting.

Quick Highlights:

  • Surface or In-Ground Mount
  • 8 ft., 10 ft., 12 ft. Entry Heights
  • With or Without Glide Elbow™
  • Traditional Shade Fabric

If your space often encounters severe weather, snow, or high winds, consider our optional Glide Elbow tensioning device as it makes installing and removing the fabric quick and easy.


Glide Elbow Mechanism
Shade Care And Maintenance
Uninstalling the Shade Canopy

In-ground mounting, without glide elbow, and stainless steel hardware designs are available upon request and are subject to additional costs.
