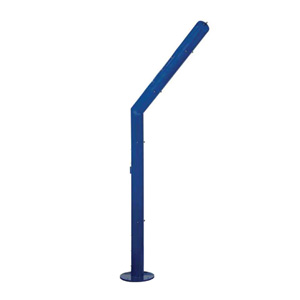

Comfort Spray Station

Description

Standard features include:

• Column is fabricated from one piece steel pipe and all exposed parts are recessed in welded steel plates
• Mounting plate comes standard
• Access plates are vandal resistant and provide easy maintenance
• Push button chrome plated brass valve recessed in 3/8” steel plate
• Stainless steel supply fittings connected to reinforced tubing
• Blue powder coat finish with optional colors and stainless steel (-SS) available
• 6-5/8″ diameter steel pipe with 1/8″ wall thickness
• Heavy duty, vandal resistant spray head(s)
• Timer controlled, low maintenance water control valve(s)
• Mist heads are made from heavy duty materials and are timer controlled
• Supply complete with 1/2” IPS lock shield screwdriver stop
• 1-1/4” IPS waste pipes included with every fountain
• Surface type with mounting plate welded to pedestal.
• Metering valve is standard.

Dimensions

• 6425 – 88″H x 6-5/8″ Dia
• All dimensions subject to manufacturing variance of plus or minus 1/4″ (6 mm)
