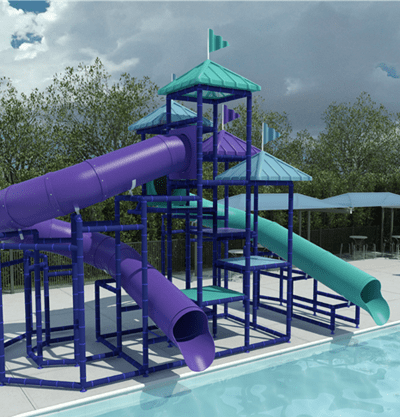

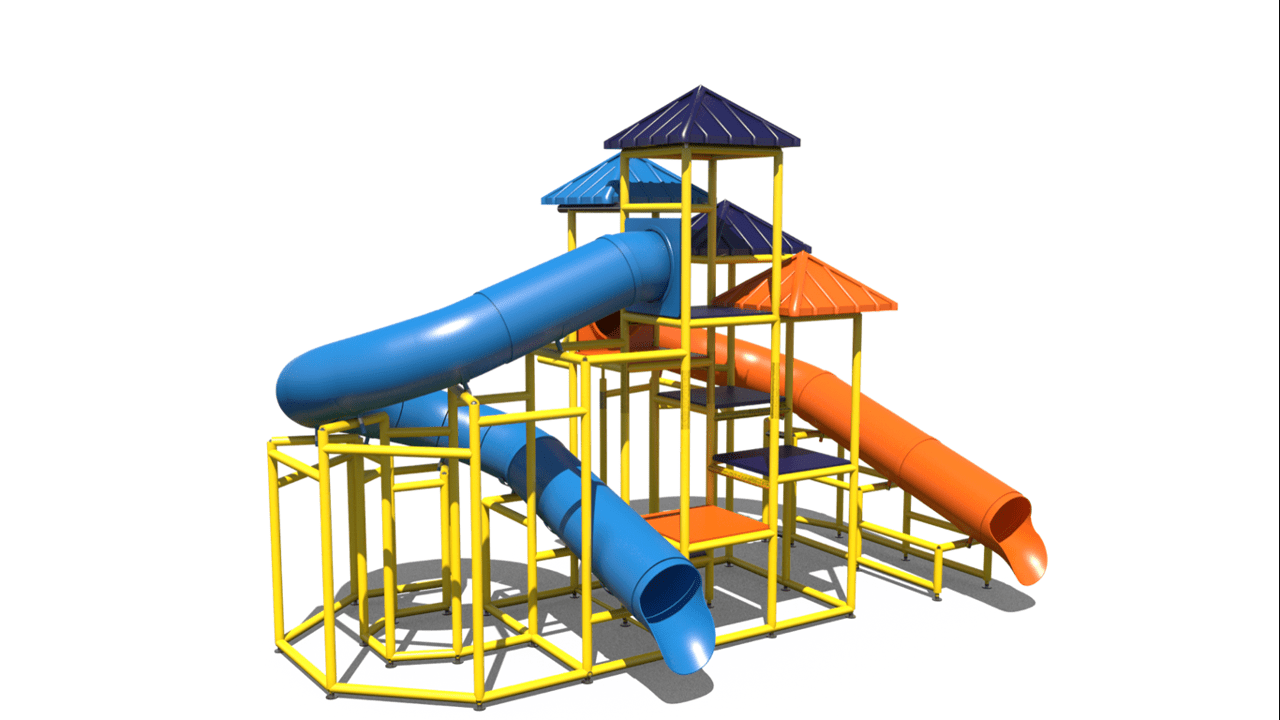

Water Slide System 303

$74,902.00

  • Two flume unit
    • Flume 1 Hook
      • 30” Inner Diameter, Bedway Run: 36’, 10’ Deck Entry
    • Flume 2 Spiral
      • 30” Inner Diameter, Bedway Run: 46’, 12’ Deck Entry
  • Overall Dimensions
    • 27’-7” W x 19’-6” L

Spec Sheet 6455-0-303-KORKAT-KK

SKU: 303 6455-0 Categories: , Tag:

Description

  • 30” Inside diameter polyethylene flumes
  • Platform Decks – Roto-molded 4×4 polyethylene
    • 2’ spacing between decks
    • Enclosed deck system, 4’ approx. ht.
  • Pipe system- 1.9” O.D. Marine Grade Aluminum
    • Pipe to be covered w/foam, see color options
  • Hardware – Marine Grade tube joint, and anchor bolts
  • 20 GPM recommended water flow
    • We have available water pump + connections & hose
  • Splash down area – 6’ each side, 10’ out front
  • Minimum water depth – 4’
    • Bumper pad recommended for water depth less than 4’
  • Manufactured in USA – Carrollton, GA.
