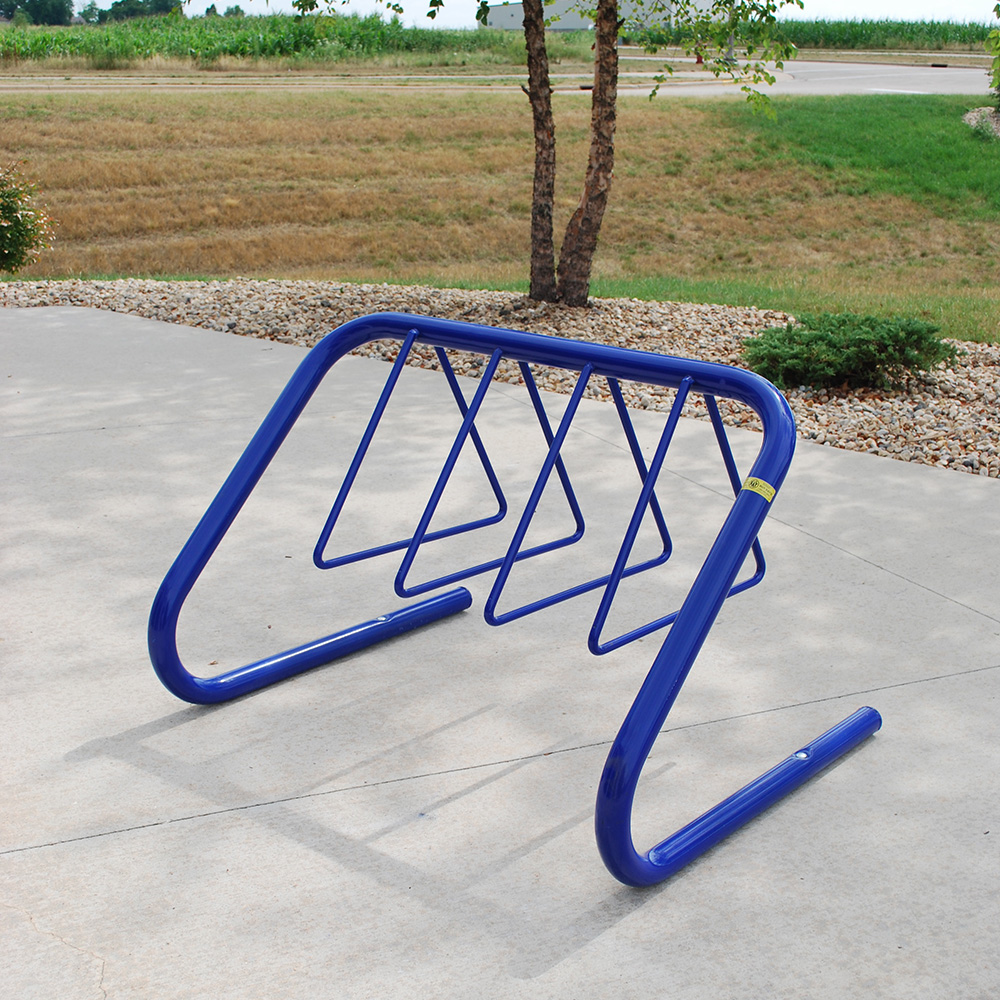

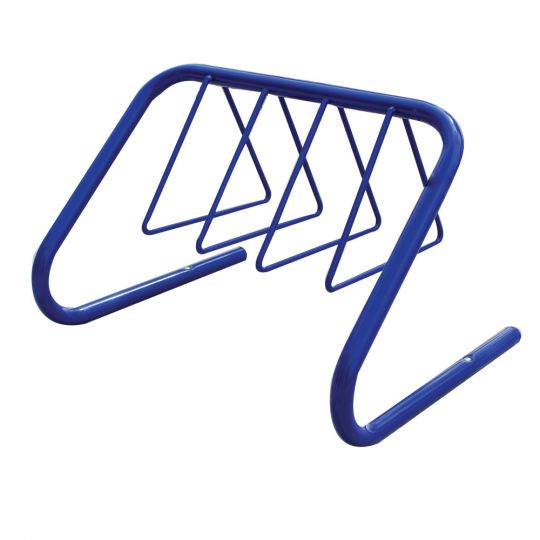

Triton Bike Rack

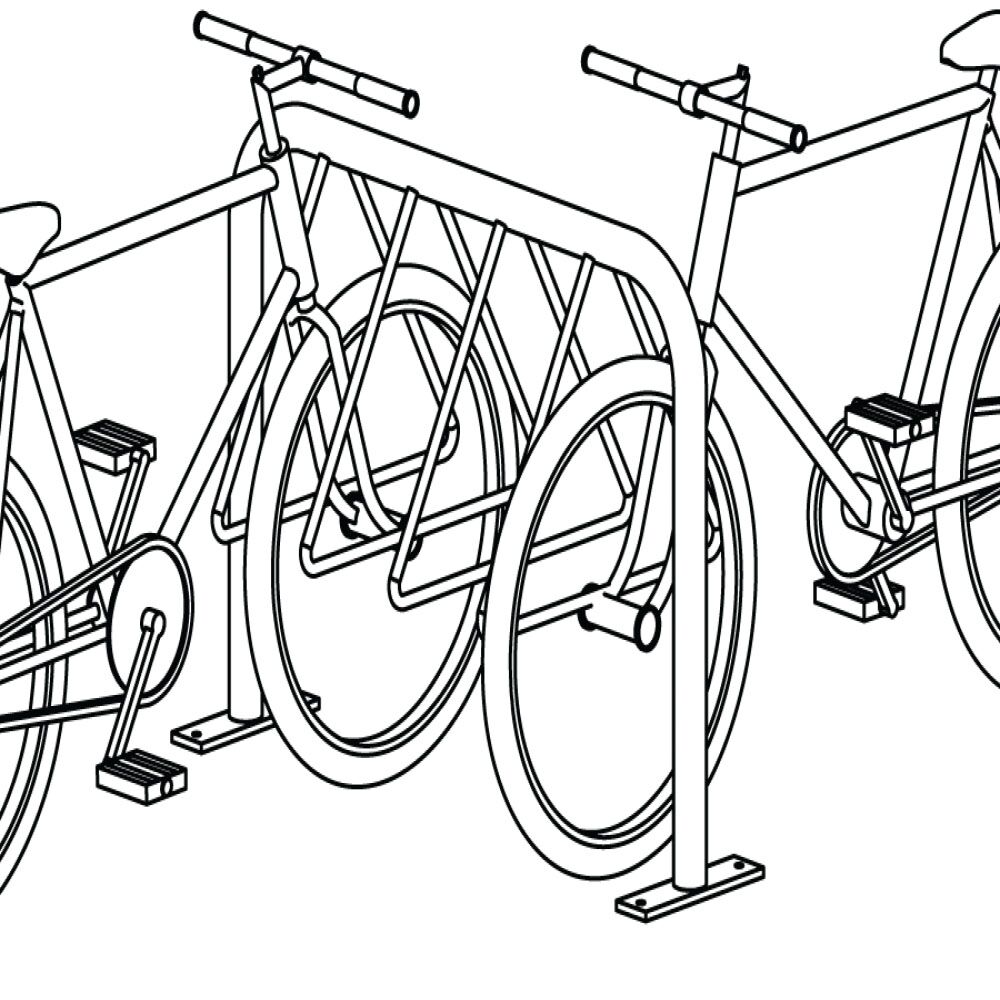

The Triton™ bike rack offers a new dimension to bicycle parking. The addition of triangle-shaped locking bars give bike owners added security – enabling bikes to be secured by frame and wheel with a single “U”-type lock. Bike owners instinctively understand how to park at the Triton™ bike rack. Bicycles can be parked on both sides of the triangle for maximum capacity in a smaller space. The versatile Triton™ bike rack accepts all types of bikes, including tricycles, tandems, and trailers and is perfect for parks, bike trails, schools, and more!

Finishes

Triton™ Bicycle Racks are available in Galvanized or Powder Coated finishes

Measurements

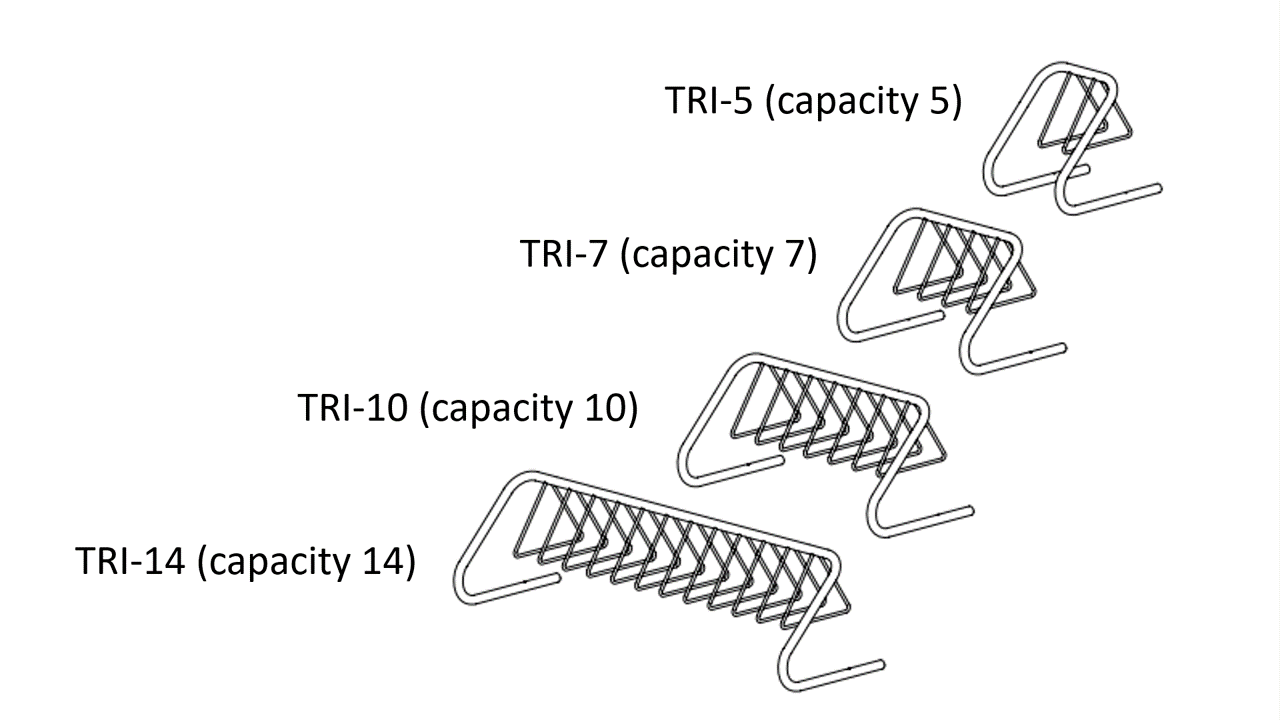

TRI-5-SF | 5-bikes | 2-3/8″ tube | 30″ L x 25″ W x 34″ H

TRI-5-FS | 5-bikes | 2-3/8″ tube | 30″ L x 38″ W x 34″ H

TRI-7-SF | 7-bikes | 2-3/8″ tube | 48″ L x 25″ W x 34″ H

TRI-7-FS | 7-bikes | 2-3/8″ tube | 48″ L x 38″ W x 34″ H

TRI-10-SF | 10-bikes | 2-3/8″ tube | 73″ L x 25″ W x 34″ H

TRI-10-FS | 10-bikes | 2-3/8″ tube | 73″ L x 38″ W x 34″ H

TRI-14-SF | 14-bikes | 2-3/8″ tube | 123″ L x 25″ W x 34″ H

TRI-14-FS | 14-bikes | 2-3/8″ tube | 123″ L x 38″ W x 34″ H

*Height measurement is from grade to top of bike rack. See CAD files below for details
